To help find and eliminate those pesky boost leaks. i created the ULTIMATE Intake Pressure tester.
with the aide of the local ACE Hardware store (i wonder if they sell
performance stickers?) i purchased:
Description | Qty | $ |
3" PCV end cap | 1 | 3.79 |
3" PCV cap | 1 | 1.79 |
3" x 3" Flex coupler | 1 | 4.99 |
1/4" barb to 1/4" NPT | 2 | .79 |
Pressure gauge (bought a 180lbs guage but would like to find a 20 lbs guage) | 1 | 6.95 |
1/4" barb hose adapter for gauge | 1 | 2.19 |
one foot of clear 1/4" vacum line | 1 | .17 |
TOTAL | 21.46 |
Pics of the tester fully assembled

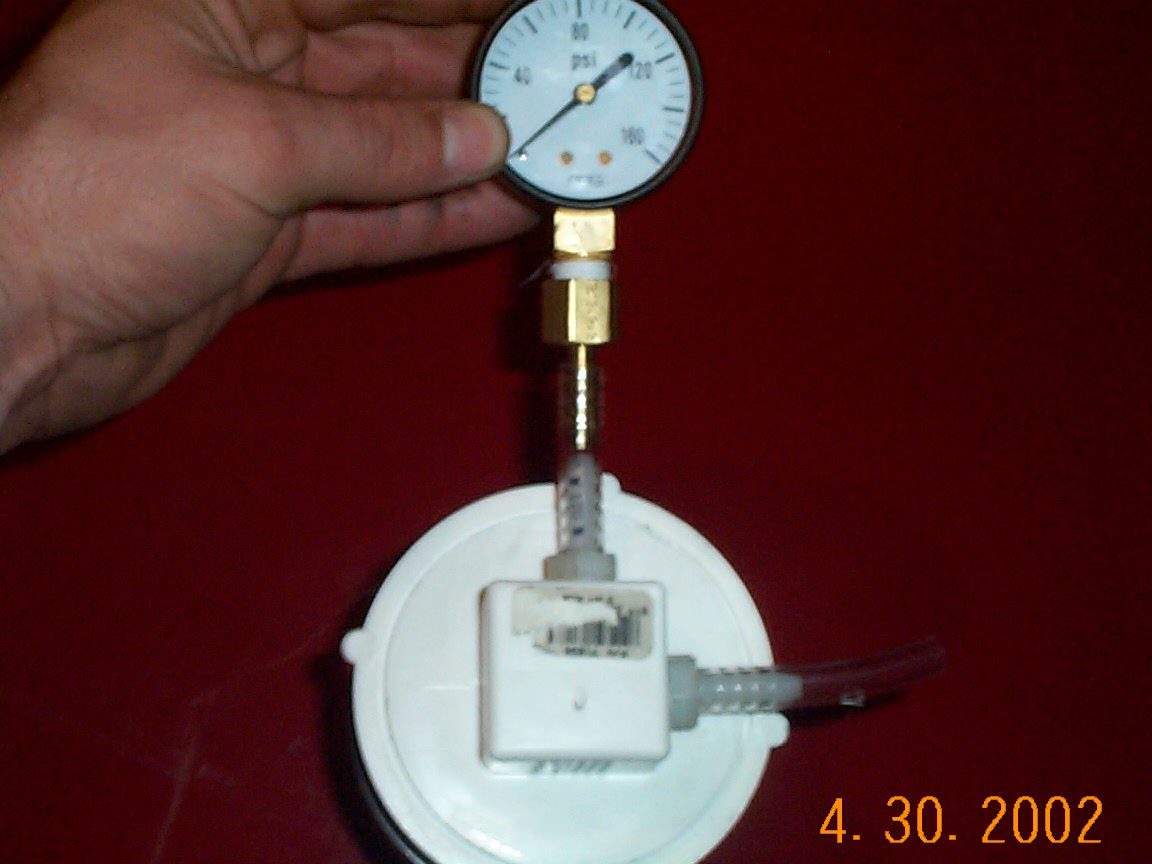

pic1

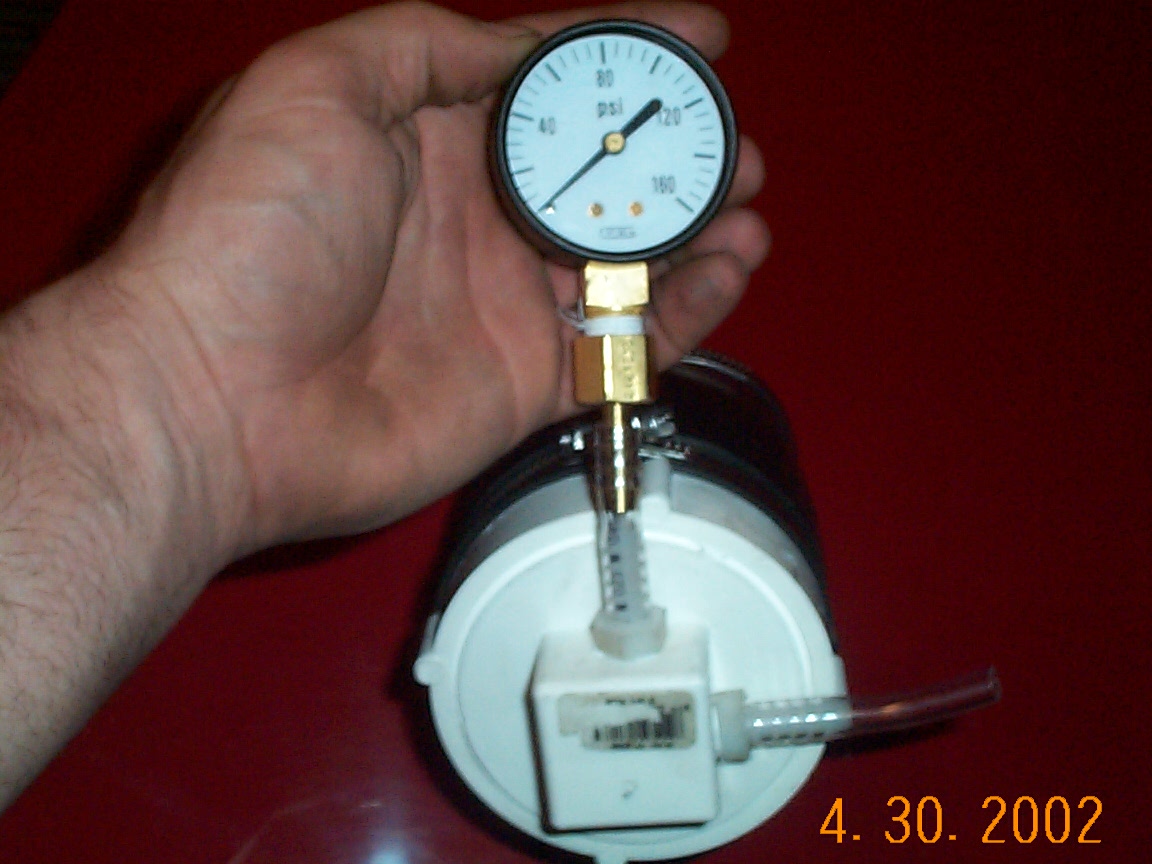

pic2

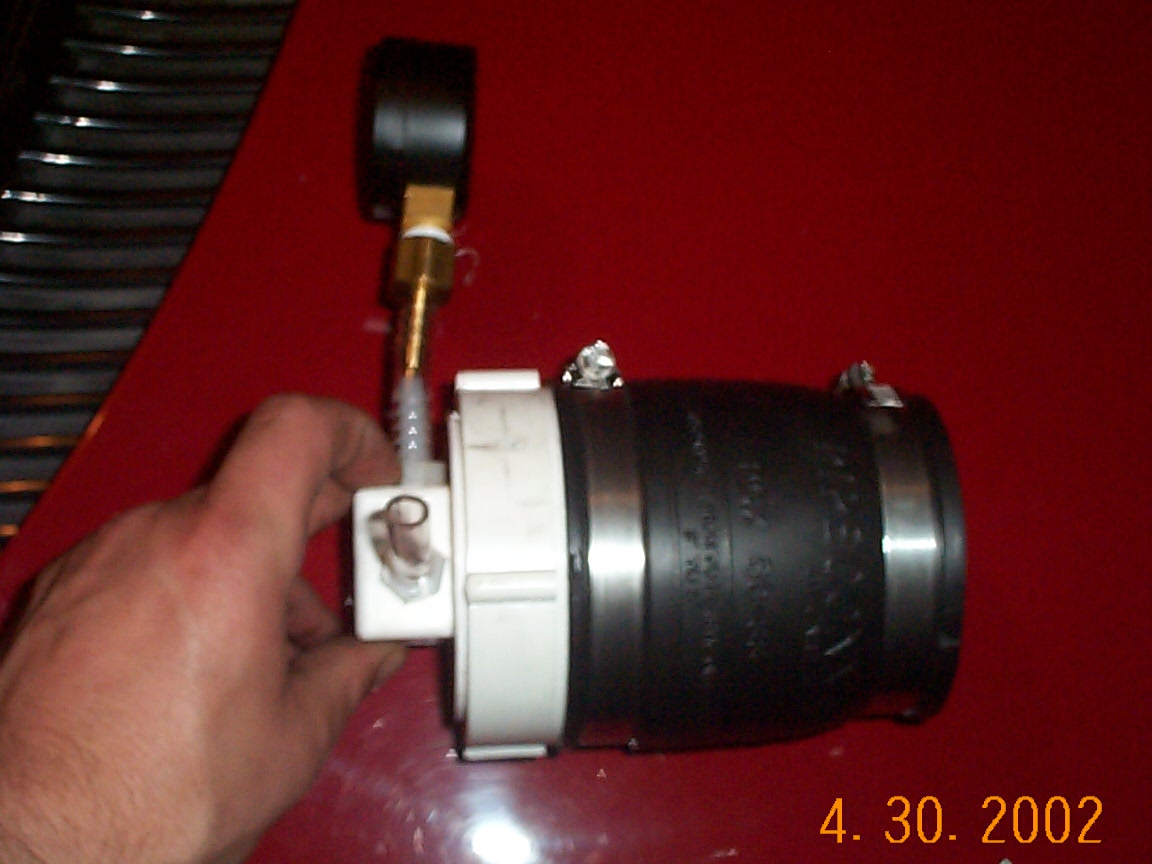

pic3
